Expected Output: 06_use_toolsets

This document shows the expected console output and example figures from all examples in python/src/adctoolbox/examples/06_use_toolsets/.

Summary

All examples in 06_use_toolsets demonstrate comprehensive dashboard generation:

Total Examples: 4

Categories: - Analog Output Dashboards: exp_t01-t02 (single and batch, 12 tools per dashboard) - Digital Output Dashboards: exp_t03-t04 (single and batch, 6 tools per dashboard)

Analog Dashboard (12 Tools): 1. Spectrum 2. Spectrum Polar 3. Error by Value 4. Error by Phase 5. Decomposition Time 6. Decomposition Polar 7. Error PDF 8. Error Autocorrelation 9. Error Spectrum 10. Error Envelope Spectrum 11. Phase Plane 12. Error Phase Plane

Digital Dashboard (6 Tools): 1. Spectrum: Nominal Weights 2. Spectrum: Calibrated Weights 3. Bit Activity 4. Overflow Check 5. ENOB Bit Sweep 6. Weight Radix

Key Features: - Comprehensive all-in-one debugging dashboards - Batch processing for multiple test cases - 15 analog non-ideality types analyzed - 7 digital configuration types analyzed

exp_t01_aout_dashboard_single.py

Description: Generate a single comprehensive 12-tool analog output dashboard.

[Config] Fs=800 MHz, Fin=10.00 MHz, Bin/N=[819/65536], Resolution=12 bits
[Config] Signal: A=0.490 V, DC=0.500 V, Noise RMS=50.00 uVrms
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t01_aout_dashboard.png

exp_t02_aout_dashboard_batch.py

Description: Generate batch of 15 comprehensive dashboards for different non-idealities.

[Config] Fs=800 MHz, Fin=97.0 MHz, Bin=7947, N=65536
[Config] A=0.490 V, DC=0.500 V, Resolution=12 bits


====================================================================================================
#    | Non-Ideality                   | Status                                   | Time (s)
----------------------------------------------------------------------------------------------------
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_01_Thermal_Noise.png
1    | Thermal Noise                  | exp_t02_dashboard_01_Thermal_Noise.png   | 4.763
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_02_Quantization_Noise.png
2    | Quantization Noise             | exp_t02_dashboard_02_Quantization_Noise.png | 4.892
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_03_Jitter_Noise.png
3    | Jitter Noise                   | exp_t02_dashboard_03_Jitter_Noise.png    | 4.659
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_04_AM_Noise.png
4    | AM Noise                       | exp_t02_dashboard_04_AM_Noise.png        | 2.924
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_05_Static_HD2_-80_dBc.png
5    | Static HD2 (-80 dBc)           | exp_t02_dashboard_05_Static_HD2_-80_dBc.png | 2.738
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_06_Static_HD3_-70_dBc.png
6    | Static HD3 (-70 dBc)           | exp_t02_dashboard_06_Static_HD3_-70_dBc.png | 3.007
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_07_Memory_Effect.png
7    | Memory Effect                  | exp_t02_dashboard_07_Memory_Effect.png   | 3.810
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_08_Incomplete_Settling.png
8    | Incomplete Settling            | exp_t02_dashboard_08_Incomplete_Settling.png | 5.530
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_09_RA_Gain_Error.png
9    | RA Gain Error                  | exp_t02_dashboard_09_RA_Gain_Error.png   | 9.085
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_10_RA_Dynamic_Gain.png
10   | RA Dynamic Gain                | exp_t02_dashboard_10_RA_Dynamic_Gain.png | 9.169
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_11_AM_Tone.png
11   | AM Tone                        | exp_t02_dashboard_11_AM_Tone.png         | 17.862
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_12_Clipping.png
12   | Clipping                       | exp_t02_dashboard_12_Clipping.png        | 17.341
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_13_Drift.png
13   | Drift                          | exp_t02_dashboard_13_Drift.png           | 14.287
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_14_Reference_Error.png
14   | Reference Error                | exp_t02_dashboard_14_Reference_Error.png | 3.517
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t02_dashboard_15_Glitch.png
15   | Glitch                         | exp_t02_dashboard_15_Glitch.png          | 3.532
====================================================================================================


====================================================================================================
Dashboard Generation Complete!
----------------------------------------------------------------------------------------------------
Generated 15 comprehensive 12-tool dashboards
Each dashboard includes:
  1. Spectrum                    7. Error PDF
  2. Spectrum Polar              8. Error Autocorrelation
  3. Error by Value              9. Error Spectrum
  4. Error by Phase             10. Error Envelope Spectrum
  5. Decomposition Time         11. Phase Plane
  6. Decomposition Polar        12. Error Phase Plane

Output directory: D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output
====================================================================================================

Example Dashboard Figures:

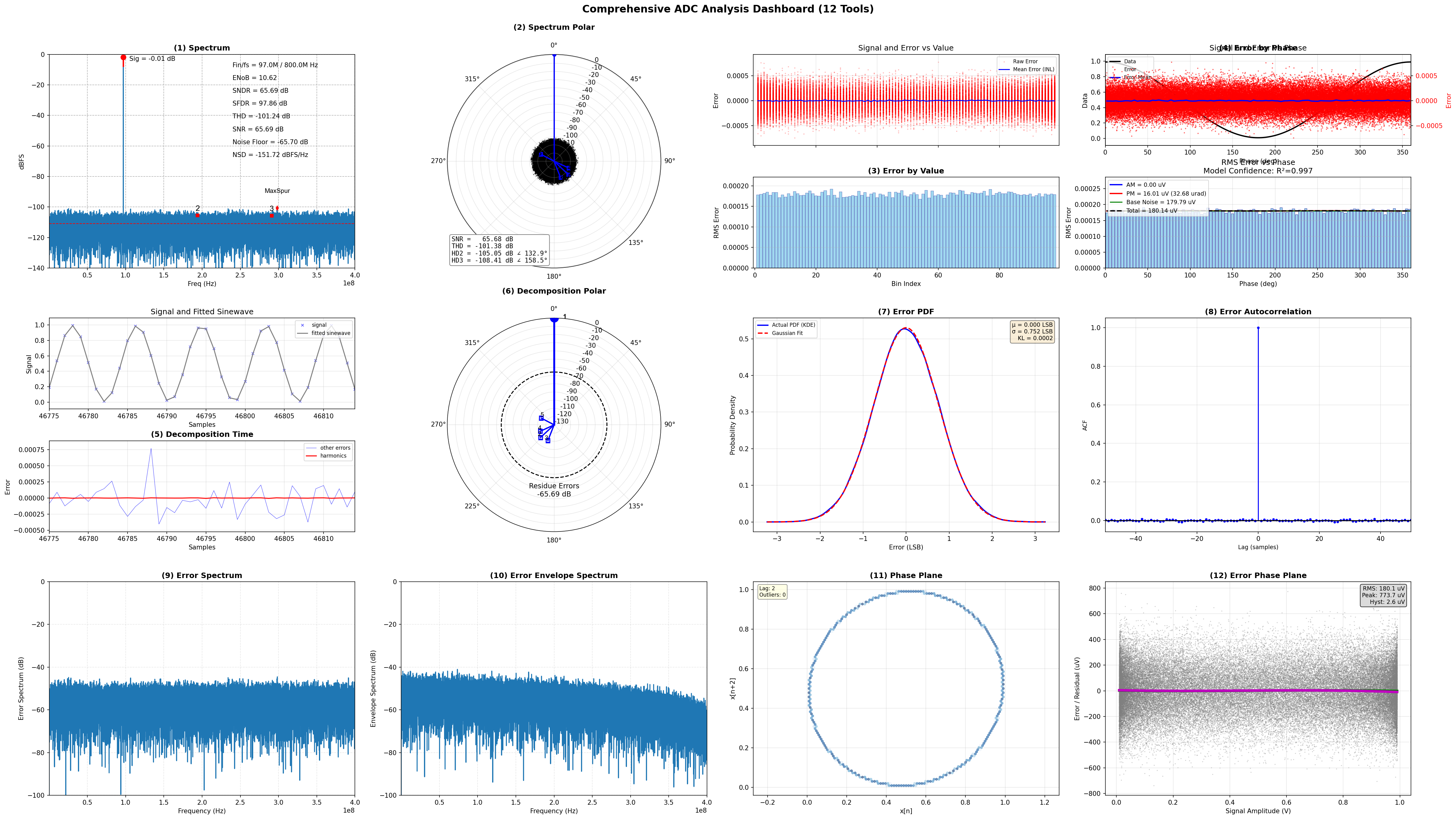

Dashboard - Thermal Noise Analysis

Thermal Noise: Comprehensive 12-tool analysis dashboard

Dashboard - Jitter Noise Analysis

Jitter Noise: Phase noise and timing jitter effects

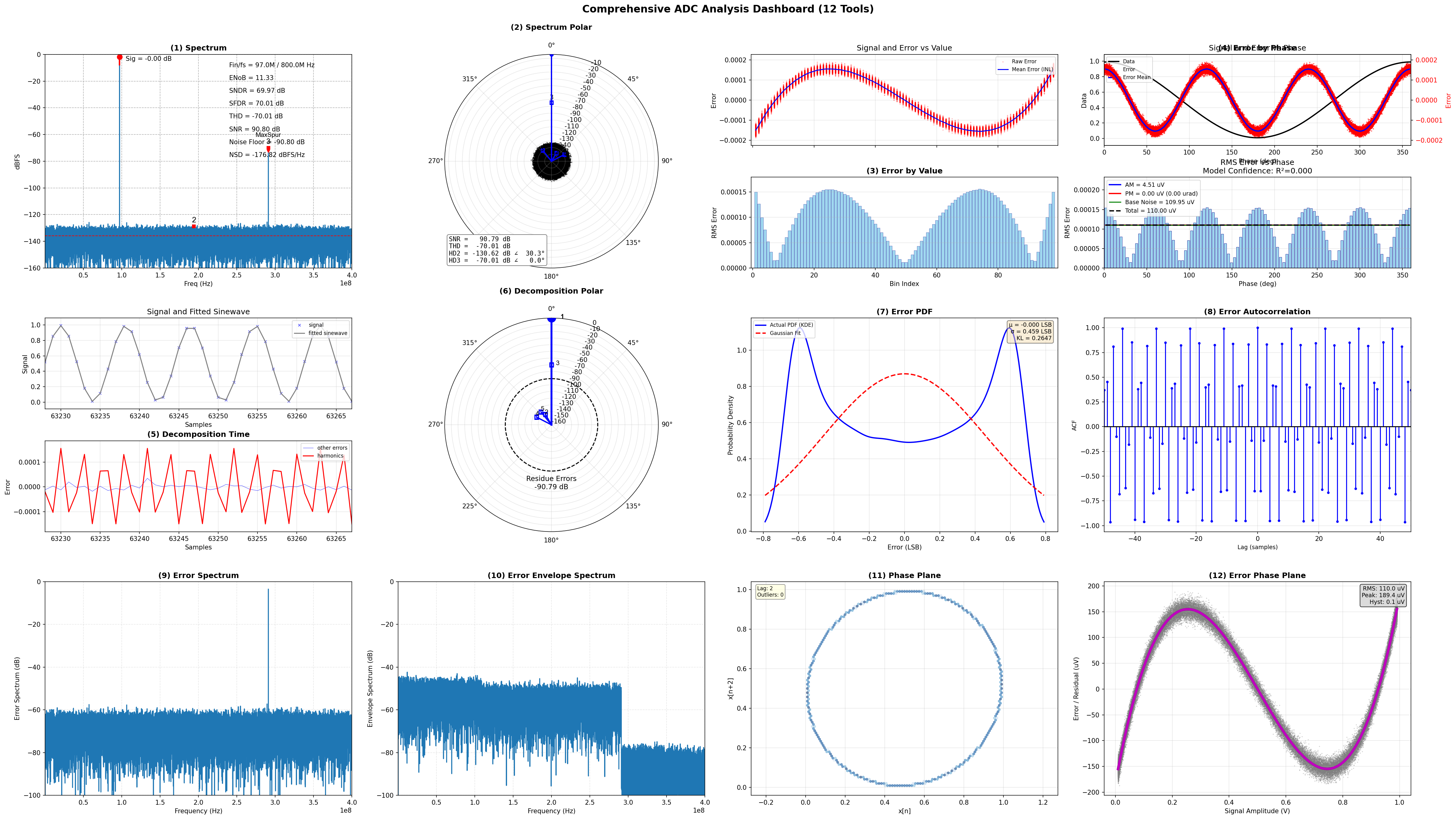

Dashboard - Static HD3 Distortion

Static HD3 (-70 dBc): Third harmonic distortion analysis

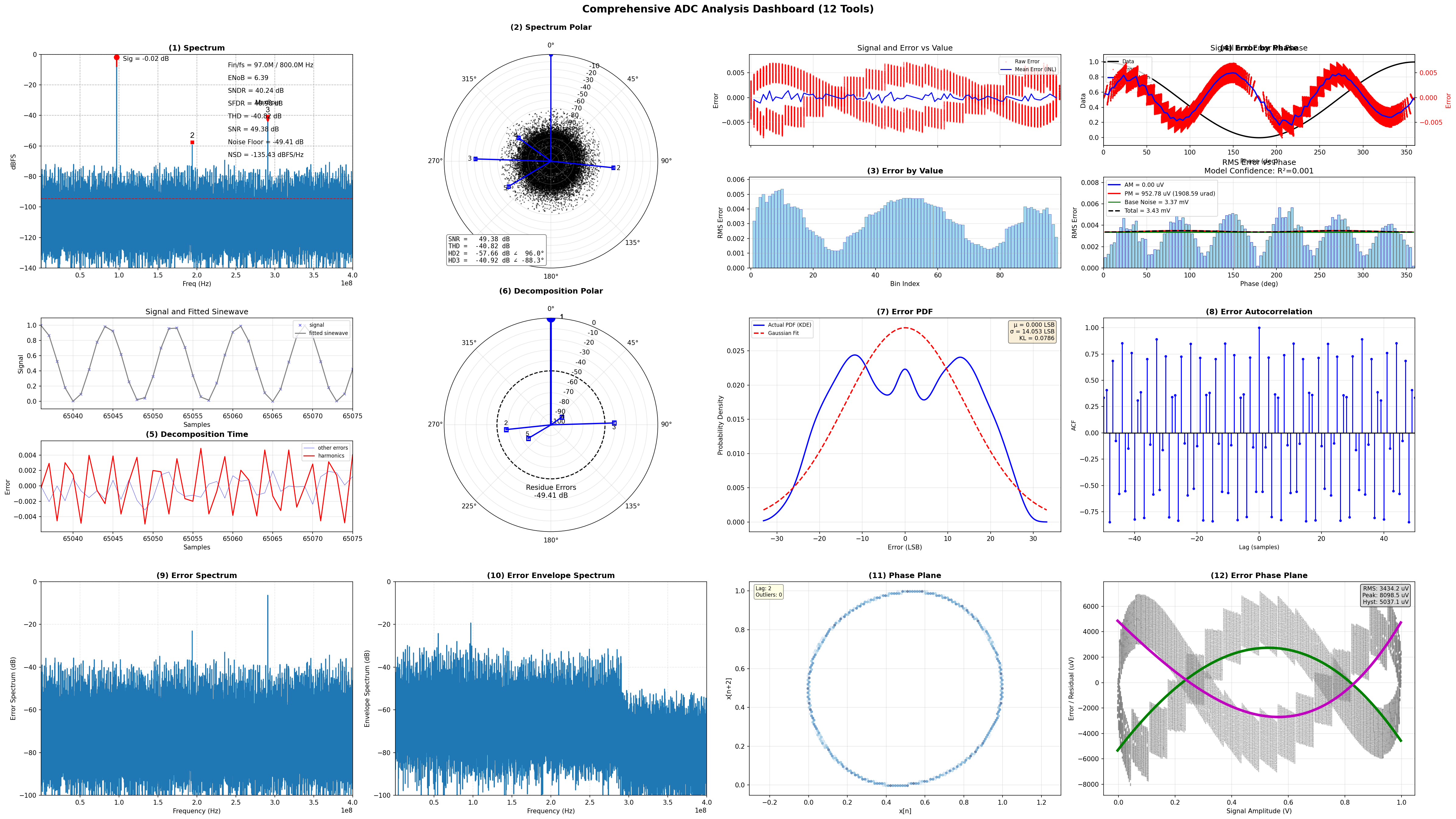

Dashboard - RA Dynamic Gain

RA Dynamic Gain: Residue amplifier dynamic gain variation

exp_t03_dout_dashboard_single.py

Description: Generate a single comprehensive 6-tool digital output dashboard.

[Config] Fs=1000 MHz, Fin=299.93 MHz, Bin/N=[2457/8192], Resolution=12 bits
[Config] Signal: A=0.490, DC=0.500
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t03_dout_dashboard.png

exp_t04_dout_dashboard_batch.py

Description: Generate batch of 7 digital output dashboards for different configurations.

[Config] Fs=1000 MHz, Fin=299.93 MHz, Bin/N=[2457/8192]
[Config] Signal: A=0.490, DC=0.500


====================================================================================================
#    | Test Case                                | Status                                   | Time (s)
----------------------------------------------------------------------------------------------------
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t04_dashboard_01_Ideal_Binary_8-bit.png
1    | Ideal Binary 8-bit                       | exp_t04_dashboard_01_Ideal_Binary_8-bit.png | 1.178
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t04_dashboard_02_Ideal_Binary_10-bit.png
2    | Ideal Binary 10-bit                      | exp_t04_dashboard_02_Ideal_Binary_10-bit.png | 1.221
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t04_dashboard_03_Ideal_Binary_12-bit.png
3    | Ideal Binary 12-bit                      | exp_t04_dashboard_03_Ideal_Binary_12-bit.png | 1.328
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t04_dashboard_04_Binary_12-bit_with_Thermal_Noise_50uV.png
4    | Binary 12-bit + Thermal Noise (50uV)     | exp_t04_dashboard_04_Binary_12-bit_with_Thermal_Noise_50uV.png | 1.403
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t04_dashboard_05_Binary_12-bit_with_Thermal_Noise_200uV.png
5    | Binary 12-bit + Thermal Noise (200uV)    | exp_t04_dashboard_05_Binary_12-bit_with_Thermal_Noise_200uV.png | 1.339
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t04_dashboard_06_Binary_12-bit_with_LSB_Random.png
6    | Binary 12-bit + LSB Random               | exp_t04_dashboard_06_Binary_12-bit_with_LSB_Random.png | 1.350
[Dashboard saved] -> D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output\exp_t04_dashboard_07_SAR_12-bit_with_Thermal_Noise.png
7    | SAR 12-bit + Thermal Noise               | exp_t04_dashboard_07_SAR_12-bit_with_Thermal_Noise.png | 1.350
====================================================================================================


====================================================================================================
Dashboard Generation Complete!
----------------------------------------------------------------------------------------------------
Generated 7 comprehensive 6-tool dashboards
Each dashboard includes:
  1. Spectrum: Nominal Weights
  2. Spectrum: Calibrated Weights
  3. Bit Activity
  4. Overflow Check
  5. ENOB Bit Sweep
  6. Weight Radix

Output directory: D:\ADCToolbox\python\src\adctoolbox\examples\06_use_toolsets\output
====================================================================================================

---
