Quick Start Guide

This guide will help you get started with ADCToolbox quickly.

Spectrum Analysis

Analyze an ADC output spectrum:

import numpy as np
import matplotlib.pyplot as plt
from adctoolbox import analyze_spectrum, find_coherent_frequency

# Generate test signal
N = 2**13              # FFT points (8192 samples)
Fs = 100e6             # Sampling frequency: 100 MHz
Fin_target = 10e6      # Input frequency target: 10 MHz
Fin, _ = find_coherent_frequency(fs=Fs, fin_target=Fin_target, n_fft=N)

t = np.arange(N) / Fs
A = 0.5                # Signal amplitude
DC = 0.5               # DC offset
noise_rms = 10e-6      # Noise RMS: 10 uVrms
signal = A * np.sin(2*np.pi*Fin*t) + DC + np.random.randn(N) * noise_rms

# Analyze spectrum
plt.figure(figsize=(8, 6))
result = analyze_spectrum(signal, fs=Fs)

# Access metrics
print(f"ENOB: {result['enob']:.2f} bits")
print(f"SNDR: {result['sndr_db']:.2f} dB")
print(f"SFDR: {result['sfdr_db']:.2f} dB")
print(f"SNR: {result['snr_db']:.2f} dB")

# Show the interactive plot
plt.show()

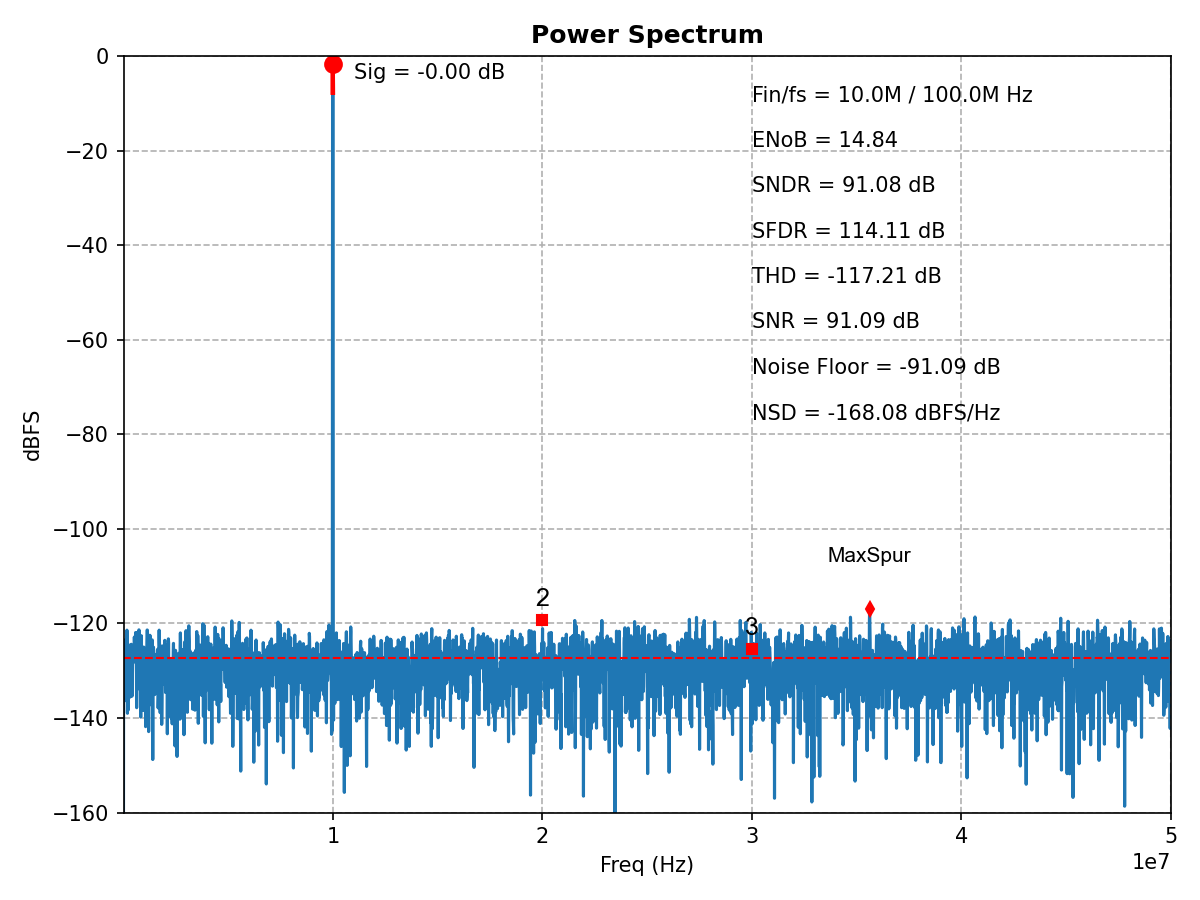

Expected output:

ENOB: 14.83 bits
SNDR: 91.06 dB
SFDR: 113.95 dB
SNR: 91.09 dB

Using Toolsets

Analog Output Dashboard

Generate a comprehensive 12-panel diagnostic dashboard for analog ADC output:

import numpy as np
from adctoolbox.toolset import generate_aout_dashboard
from adctoolbox import find_coherent_frequency

# Generate test signal
N = 2**16              # FFT points (65536 samples)
Fs = 800e6             # Sampling frequency: 800 MHz
Fin_target = 10e6      # Input frequency target: 10 MHz
Fin, _ = find_coherent_frequency(fs=Fs, fin_target=Fin_target, n_fft=N)

t = np.arange(N) / Fs
A = 0.49               # Signal amplitude
DC = 0.5               # DC offset
noise_rms = 50e-6      # Noise RMS: 50 uVrms
resolution = 12        # ADC resolution: 12 bits
signal = A * np.sin(2*np.pi*Fin*t) + DC + np.random.randn(N) * noise_rms

# Generate dashboard with 12 analysis plots
fig, axes = generate_aout_dashboard(
    signal=signal,
    fs=Fs,
    freq=Fin,
    resolution=resolution,
    output_path='aout_dashboard.png'
)

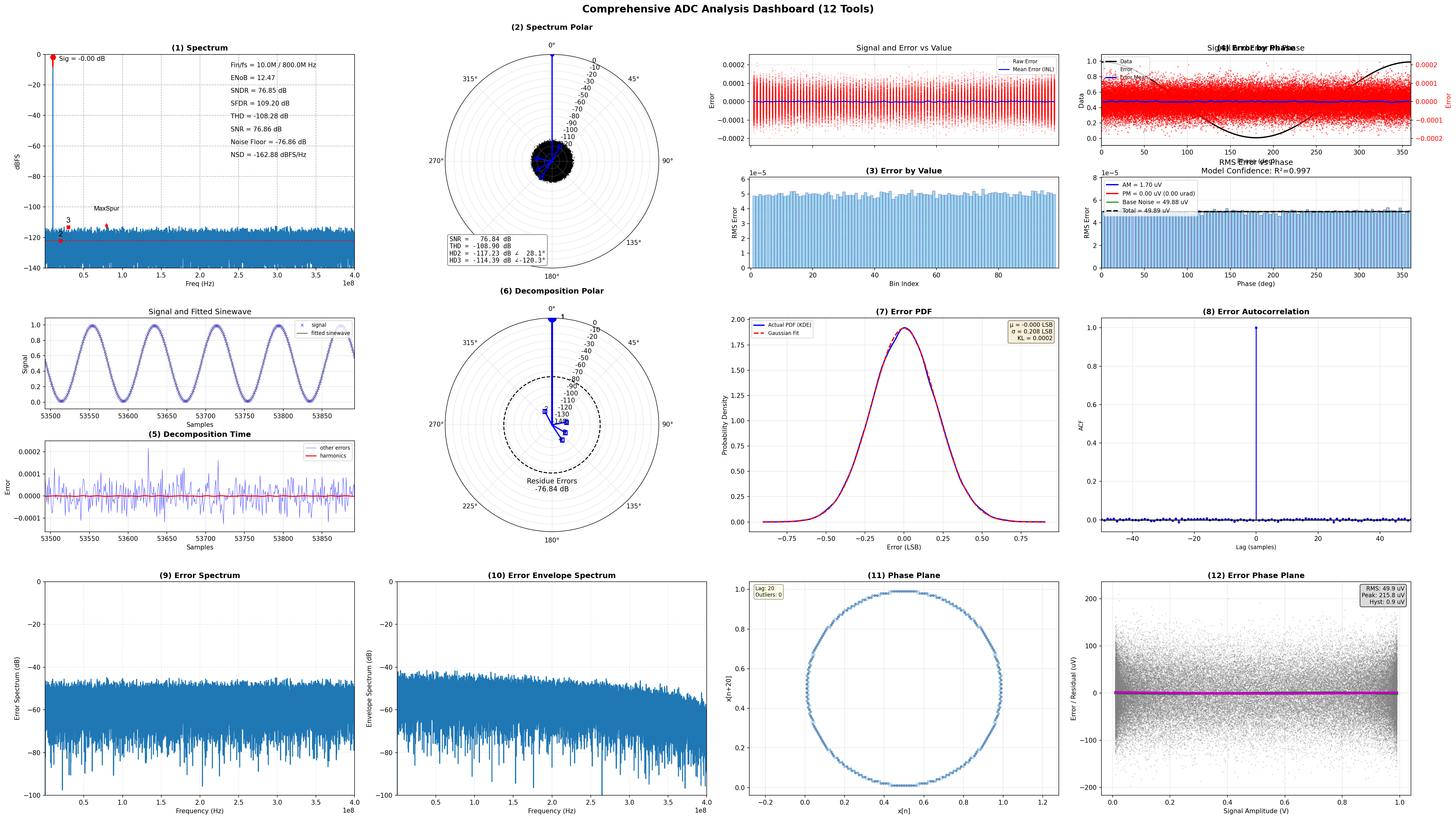

This generates a 3x4 panel dashboard with 12 diagnostic plots including spectrum analysis, error characterization (PDF, autocorrelation, spectrum), polar plots, and phase plane analysis.

Digital Output Dashboard

Generate a comprehensive 6-panel diagnostic dashboard for digital ADC bits:

import numpy as np
from adctoolbox.toolset import generate_dout_dashboard
from adctoolbox import find_coherent_frequency

# Generate test signal
N = 2**13              # FFT points (8192 samples)
Fs = 1e9               # Sampling frequency: 1 GHz
Fin_target = 300e6     # Input frequency target: 300 MHz
Fin, _ = find_coherent_frequency(fs=Fs, fin_target=Fin_target, n_fft=N)

t = np.arange(N) / Fs
A = 0.49               # Signal amplitude
DC = 0.5               # DC offset
resolution = 12        # ADC resolution: 12 bits

# Generate quantized signal and extract bits
signal = A * np.sin(2*np.pi*Fin*t) + DC
quantized_signal = np.clip(np.floor(signal * (2**resolution)), 0, 2**resolution - 1).astype(int)
bits = (quantized_signal[:, None] >> np.arange(resolution - 1, -1, -1)) & 1

# Generate dashboard with 6 analysis plots
fig, axes = generate_dout_dashboard(
    bits=bits,
    freq=Fin/Fs,       # Normalized frequency
    weights=None,      # Use binary weights by default
    output_path='dout_dashboard.png'
)

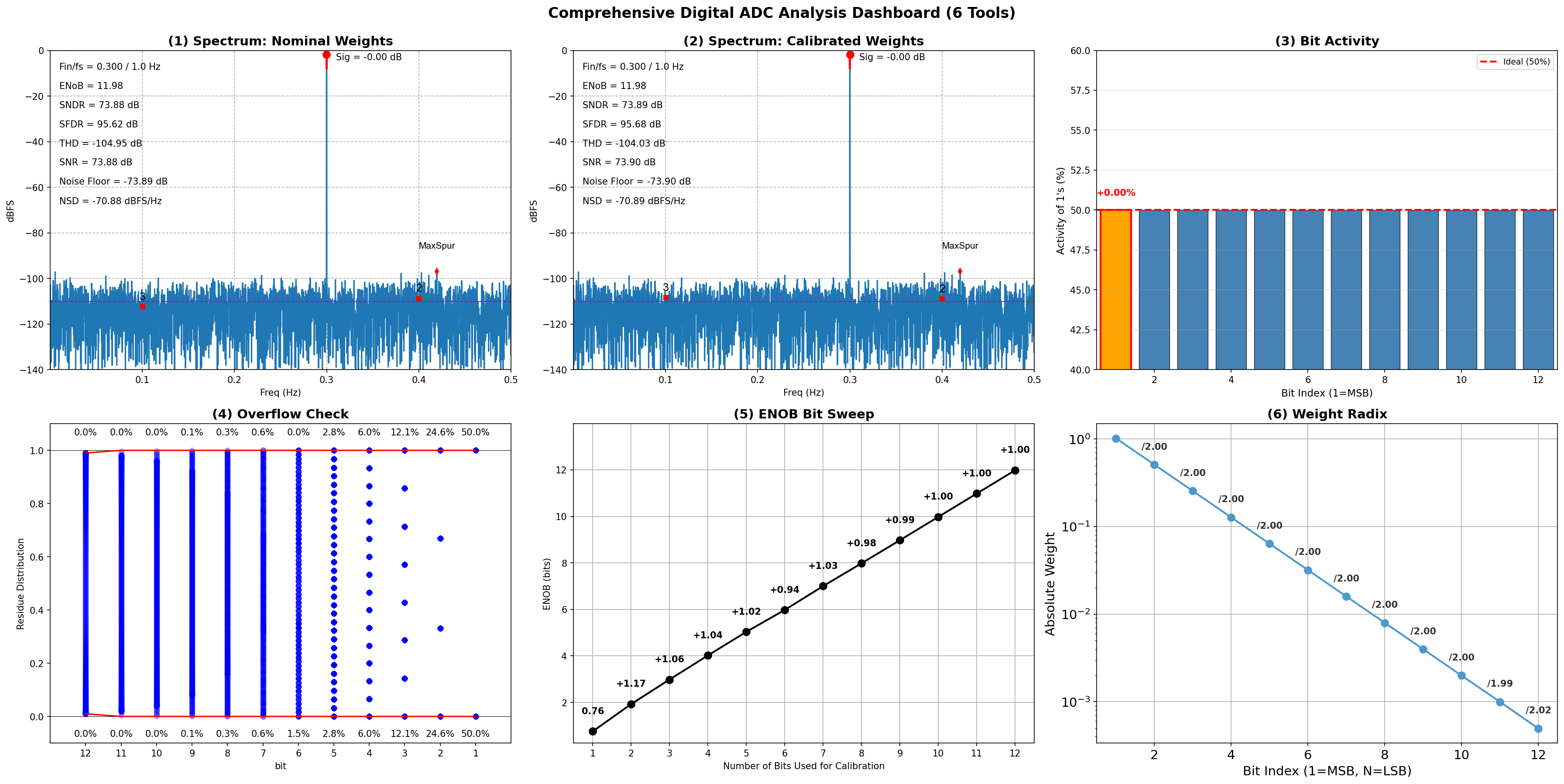

This generates a 2x3 panel dashboard with 6 diagnostic plots including spectrum before/after calibration, bit activity, overflow detection, ENOB sweep, and weight radix visualization.

Explore More Examples

The best way to learn ADCToolbox is through the ready-to-run examples.

Download all examples in one command:

mkdir adc_workspace # Prepare a workspace directory
cd adc_workspace    # Move into the workspace

adctoolbox-get-examples

Run your first examples:

python adctoolbox_examples/01_basic/exp_b01_environment_check.py

python adctoolbox_examples/02_spectrum/exp_s01_analyze_spectrum_simplest.py

python adctoolbox_examples/02_spectrum/exp_s02_analyze_spectrum_interactive.py

All outputs are saved to the output/ directory within each category.

Please refer to the Examples for detailed instructions and expected outputs.
